BMW Electrical Repair · Musaffah, Abu Dhabi800 Sayara is Abu Dhabi’s trusted name for BMW electrical fault diagnosis and precise circuit-level repairs. Our team pairs great technical skill with hands-on care to match dealer-grade results at fair, independent pricing.
A modern BMW sedan runs close to 3 km of wiring and 60 to 80 control units linked through a dual CAN-bus network. This setup first appeared in the 1995 7 Series and has grown with every new model since. Diagnostic data shows that up to 73% of these faults start with an unstable power supply, not with the part that flags the error code. Below are the issues our team handles most often:
Battery and IBS Failure
The Intelligent Battery Sensor tracks charge state, current flow, and terminal voltage. When it fails, or when the AGM cell drops below 60% health, the car triggers false “increased battery discharge” warnings and shuts down comfort features to save energy.
Alternator Output Drift
A healthy alternator puts out 13.7 to 14.7 V at idle. Any reading outside this band sends bad voltage across the CAN network and causes errors in every linked module.
Ignition Coil Circuit Faults
Failed coils or worn plug circuits cause misfires that log under codes like P0301 through P0306. Left unchecked, repeated misfires overheat the catalytic converter and turn a simple coil swap into a costly BMW engine repair job
Blower Motor Relay Failures
A burned relay or resistor pack kills the auto climate control and leaves the cabin without airflow even when the compressor runs fine. Fixing this relay is often the first step in any BMW AC repair before deeper cooling faults are checked
Starter Motor Wear
Start-stop models cycle the starter up to 50,000 times during normal use. Over time, solenoid contacts and brush length wear down, leading to slow cranking or a full no-start
CAN-Bus Harness Shorts
These develop at flex points near the firewall and door hinges, where repeated bending cracks the wire coating and exposes bare copper over time
Transmission Solenoid Signal Faults
Corrupted commands from the EGS module cause late shifts, rough gear changes, or limp mode. Many owners assume they need mechanical BMW transmission repair when the real cause is voltage drop on the supply side.
01We test, replace, and register AGM batteries with load analysers set to factory spec, then confirm alternator output to make sure voltage stays stable across every linked module.
Our team checks solenoid contacts, brush length, and gear mesh inside the starter assembly, then rebuilds or replaces the unit so your engine fires on the first turn.
Every suspect harness run gets tested pin by pin for breaks and shorts, repaired with solder-sleeve splicing and heat-shrink sealing to restore clean signal flow and block moisture.
Using live bus analysis and scope readings, we track down signal noise, dropped frames, and gateway errors across the network to find the node that triggers cascading codes.
From adaptive LED headlights and laser units to rear OLED clusters and fog lamps, we trace driver board failures, ballast faults, and levelling motor issues that affect safety.
Each new or refurbished control unit needs coding and software flashing before the car accepts it. We handle DME, FRM, CAS, BDC, and comfort modules through factory tools.
Whether it is a wheel speed sensor, yaw rate unit, or camshaft sender, we fit the OEM part and run the adaptation cycle to match factory baseline values.
Your fuse box, relay panel, and junction block are checked for blown elements, heat damage, and corroded terminals, then cleaned or replaced to bring current flow to spec.
Our facility carries over ten years of focused German-car service. That span covers everything from basic scans to full BMW pre-purchase inspection checks across dozens of models.
Every technician on our bench has worked across the full model range, from older E-series cars through the newest G-platform builds on the road today.
Our bays run ICOM scan tools, lab-grade scopes, CAN-bus testers, and battery load units tuned to factory voltage specs. The right tool cuts guesswork out of every job.
All key parts, such as sensors, control modules, relays, and plugs, come from OEM or matched OE-grade suppliers through approved channels only.
We share a written quote that lists each part, labour time, and total. No work starts until you review and approve the full scope and price.
We pick up and drop off your car anywhere in Abu Dhabi at no charge, ideal for vehicles with faults that make them unsafe to drive or unable to start.
A proper diagnosis needs OEM-grade scan tools that read every module on the car, not just the engine ECU. Standard OBD-II readers pull fewer than 15% of available fault data. Our process runs through five clear stages:
The technician notes the owner’s account, the driving conditions when the fault showed up, and all warning light patterns. This sets the direction for the full scan.
We scan all active modules in one pass using a platform built for this brand. A typical 5 Series returns data from 40 to 55 modules, including DME, EGS, DSC, FRM, and CAS.

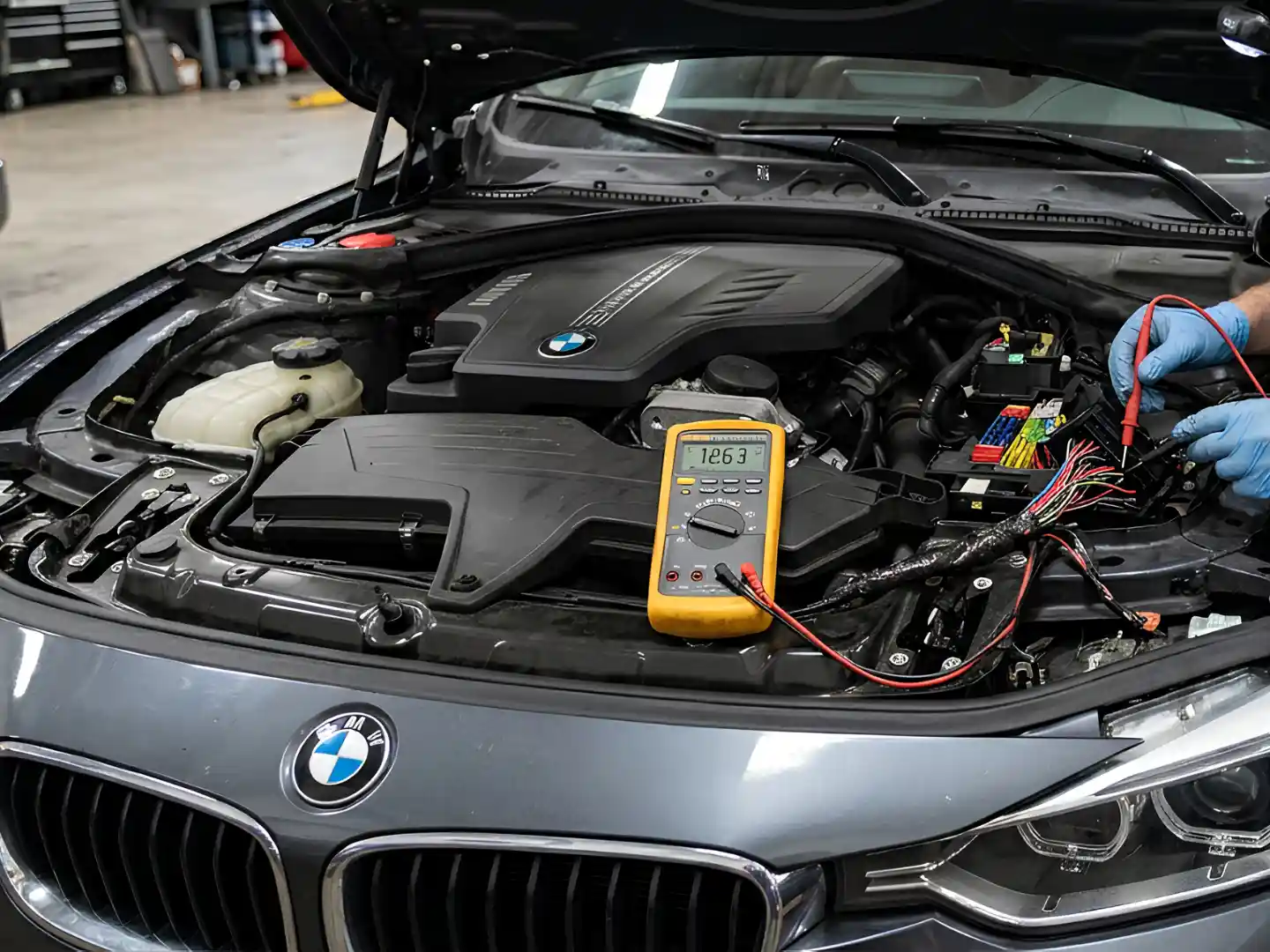

This stage covers battery health testing, parasitic draw checks, alternator output readings, and ground-point resistance at key chassis spots across the vehicle.
The technician watches real-time sensor feeds and fires each actuator one by one. This method pins down the faulty part under controlled, measured conditions.
Once the physical fix is done, every affected module goes through a coding and adaptation reset. This step lets the car accept and calibrate the new part correctly.
Service intervals built for mild European weather do not fit the load that Abu Dhabi puts on a car’s wiring and electronics. A 12 V AGM battery that lasts four to five years in Germany hits its limit within two to three years here. That works out to roughly 40% faster wear, caused by these five factors:
Road surfaces reach 70 °C in peak summer. That heat speeds up fluid loss inside battery cells and softens wire coating along exposed routes under the car body.
The climate system runs at near-full output for eight to nine months each year. This draws steady current through the compressor clutch relay, blower circuit, and cabin sensors.
Fine desert grit enters connector housings, window motors, and fuse boxes. Over time, it builds up and forms tiny short paths that raise idle current draw across the system.
Coastal moisture mixes with AC drip water and pools inside sealed plugs. This rusts the copper on terminal pins and weakens contact quality over time.
The daily swing from midday highs above 48 °C to overnight lows near 22 °C forces solder joints and pin seals to expand and shrink. These repeated cycles form micro-cracks over months.
Contact 800 Sayara to book a full-system scan and let our team trace, isolate, and clear every active and stored fault code to factory spec. Call us or send a WhatsApp message to get a same-day appointment at our Abu Dhabi facility. Free pickup is available across the city for vehicles that cannot be driven safely.
800 Sayara — Al Hasheemah 4 St, Musaffah Industrial, Abu Dhabi· Mon–Sat 9:00–19:00·Open in Google Maps·+971 52 731 8779
Typical driving time to our workshop from every area we cover (tap a location to open the route):
Times are Google Maps' typical range leaving on a weekday at 11:00 AM; rush hour takes longer. Free pickup and delivery of your car is available across Abu Dhabi.
Still have a question?
Talk to a BMW advisor directly. Free written estimate before any work begins.
+971 52 731 8779 WhatsAppThis alert shows when the IBS sensor reads more current leaving the battery than the cell can replace. Usual causes are a faulty IBS giving wrong readings, a module that stays awake when the car is off (like the Bluetooth unit or seat memory ECU), or an old cell that can no longer hold standby load.
A full scan, voltage check, and live-data review usually takes 90 to 150 minutes. The exact time depends on the model and how many fault codes are stored. Faults that only show up under certain loads or heat levels may need a longer test drive to recreate.
Yes. The CAN bus runs within a tight voltage window of 12.2 to 14.7 V. When voltage dips below that floor, modules read garbled signals and flag faults for parts that still work fine. Fixing the power source alone clears these ghost codes with no part swap needed.
Minor jobs like battery swaps, sensor changes, and relay fixes usually fall between AED 350 and AED 1,500. Deeper work that involves ECU replacement or harness repairs ranges from AED 1,500 to AED 5,000+, based on the model and part lead time.
It depends on the fault type. A failing alternator or a CAN-bus short can cut power to ABS, stability control, and airbag modules with no warning on the dash. Driving with a live fault code puts you and others at risk. Get the car scanned before driving further.
A healthy car draws 30 to 50 milliamps in sleep mode. When a module stays awake after the key is off, that draw climbs to 300 mA or more and kills the battery in 8 to 12 hours. Common culprits include the Bluetooth unit, the seat comfort module, a faulty door lock motor, and add-on devices wired to a live feed instead of a switched line.
Book a full electrical health check every 12 months or every 15,000 km, whichever comes first. The UAE’s heat cycle cuts battery life by up to 40% versus cooler regions. Dust buildup on plugs also raises idle current draw over time. Catching a weak cell or corroded ground early stops the chain of secondary fault codes that turns a small fix into a large bill.
Yes, badly wired add-ons are a top cause of drain and module errors. Items like dash cameras, phone chargers, LED strips, and aftermarket amps cause trouble when they tap a constant-power wire instead of a switched line. They can also send noise into the CAN bus if connected without signal isolation. Have any aftermarket wiring checked by a trained technician to avoid hidden load on the system.
