BMW Suspension Repair · Musaffah, Abu Dhabi800 Sayara has earned the trust of hundreds of BMW owners across Abu Dhabi through precise work and honest service. Every mechanic on our floor brings hands-on skill with German-built chassis systems. Our workshop is set up for luxury car care, giving you dealer-level results at non-dealer pricing.
Joints on Abu Dhabi highways and raised speed bumps across local zones create sharp upward impacts. These repeated jolts push bushings and shock internals past their design limits. Parts wear out far faster here than they do in milder climates.
Summer road surface temps often exceed 60°C, thinning damper fluid and hardening rubber parts. Bushing flex drops by 10–15% each year under constant UV and heat. That rate is nearly double what cooler regions produce.
Dense commute routes through Khalifa City, Al Reem Island, and Mussafah put the front thrust arm bushings under constant shear force. Repeated low-speed braking and launch cycles wear these fluid-filled mounts out far sooner than highway-only driving would.
Fast lane changes and curved ramp entries put strong side loads on rear trailing arm bushings, camber links, and sway bar end links. This uneven stress creates early play in the rear axle setup over time.
Factory-fitted struts and shocks hold their rated output for 60,000–80,000 km under normal driving. Control arm bushings and ball joints need expert review around the 50,000 km mark. Full swap is often due between 60,000 and 100,000 km based on the model and driving style.
Skipping scheduled underbody reviews allows small bushing cracks and slow fluid leaks to grow unseen. One missed thrust arm defect leads to shifted angles, faster tyre wear, and weaker braking response within 15,000–20,000 km.
01Worn monotube or twin-tube dampers lose fluid pressure and fail to control spring bounce. We test rebound force on a special test rig, confirm the fault, and fit OEM-grade units from trusted brands like Bilstein and Sachs.

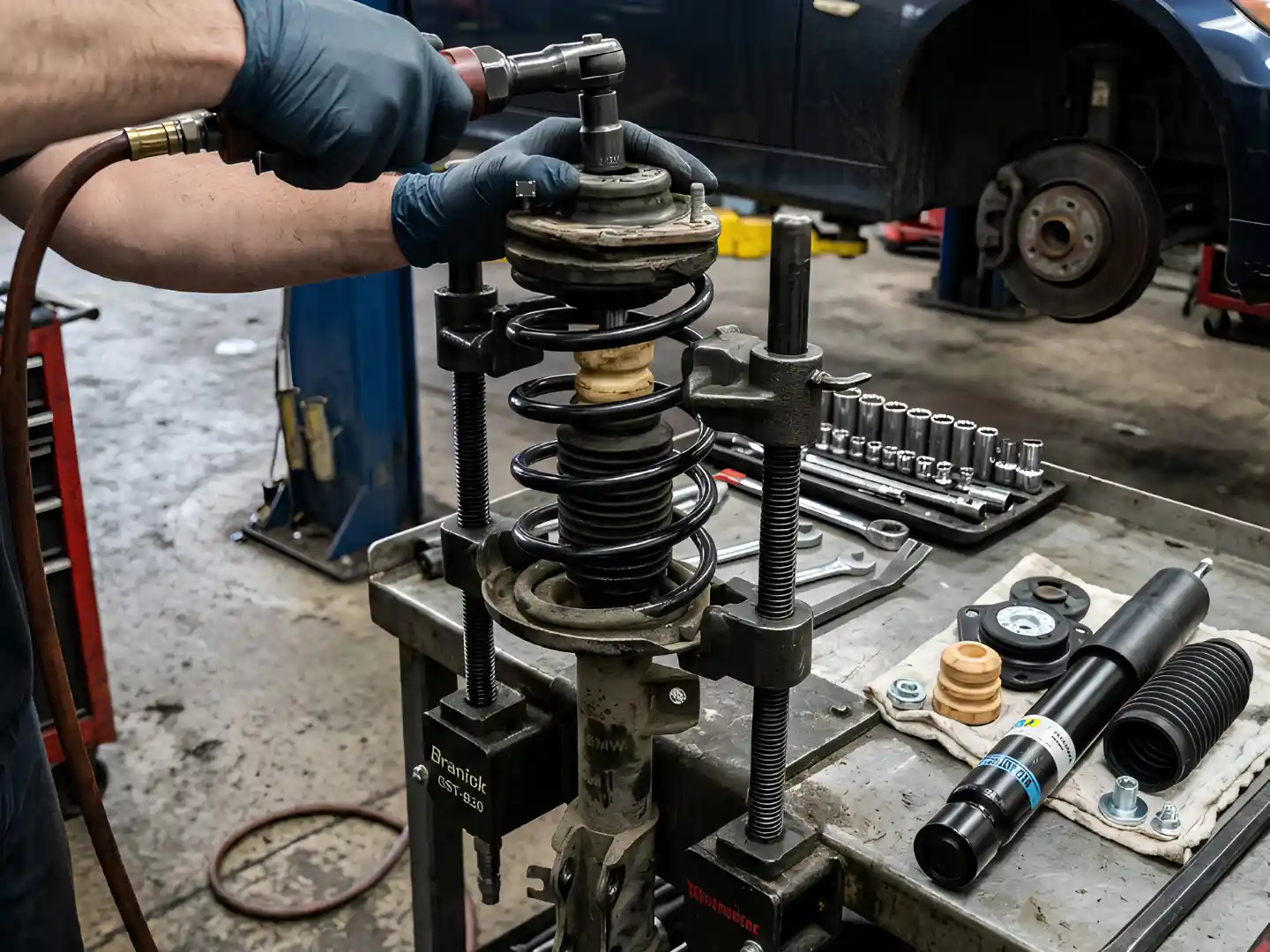

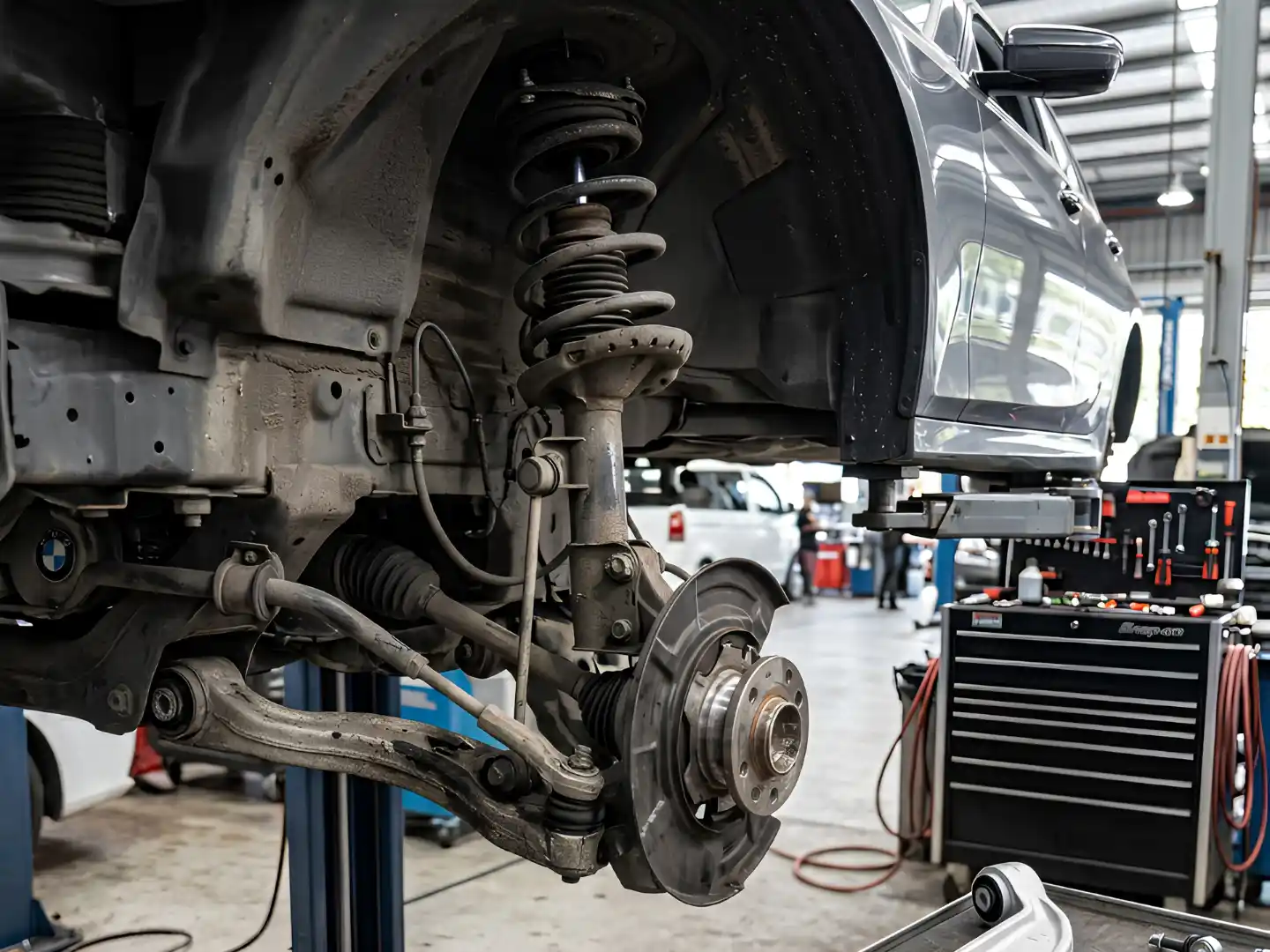

Each MacPherson unit combines a damper, coil spring, upper mount, bump stop, and dust boot into one load-bearing part. Our team swaps the full unit as a set and fits new mounts and spring pads to bring back factory ride height and steering pivot angles.

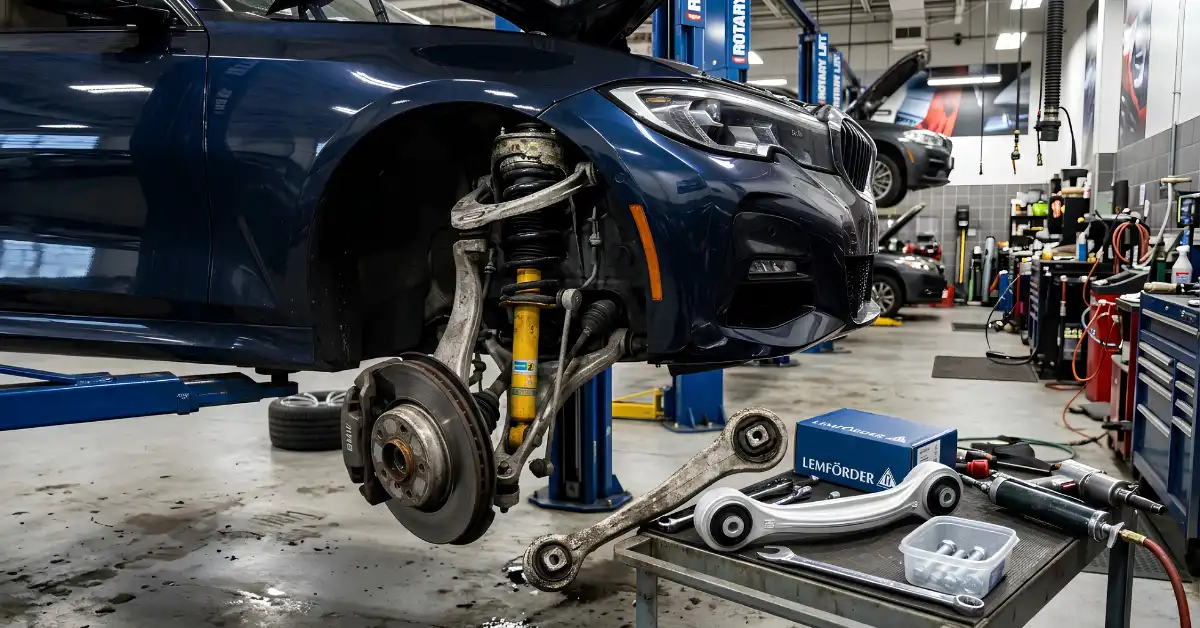

Front thrust arm inner bushings rank among the most failure-prone parts in F-gen and G-gen chassis. We swap both thrust arms and lower control arms as a matched set, using factory-spec bolts and following the exact tightening sequence from TIS records.
Worn ball joints create clear play between the control arm and the steering knuckle. Our team checks axial and radial movement with a dial gauge, then presses new joints into place using press tooling to prevent housing damage.
Anti-roll bar end links hold small inner joints that wear down and produce metallic clunking over rough roads. Some models have bushings bonded right onto the bar, so the full sway bar unit needs swapping rather than just the bushing.
Models with air ride use controlled struts, a pump, a valve block, and height sensors. Our team runs leak-down testing on each air spring, checks pump output pressure, and swaps only the confirmed failed module.
Cracked or tired springs create a visible height gap of 15–30 mm across corners. We always renew springs in axle pairs to keep even ride height. Each new spring is matched to the car's gross weight rating and chassis code.
Rear subframe, trailing arm, and diff mount bushings absorb drivetrain shake and hold the rear axle in place. We press in new units using model-matched jigs, including MIS tooling for E46 and E90 builds, to ensure clean fitment with no distortion.
A mechanic road-tests the car to bring out the reported fault, then raises it on a four-post lift for a full visual check of every part within reach.
ISTA+ scans pull chassis and damper control module codes. For EDC-fitted models, the scan also shows live sensor data and damper response curves.
Each suspect part goes through a focused test. Shocks are run on damper rigs, air springs get pressure checks, and ball joints are measured with dial gauges.
A filmed review listing part numbers, costs, and urgency rankings is shared with you online before any swap work begins.
All parts are fitted per TIS torque steps at loaded ride height. Every job ends with a four-wheel alignment checked against factory camber, caster, and toe values.
Our BMW-trained mechanics bring over ten years of hands-on chassis skill across sedans, coupes, and SAV builds. That depth of practice means accurate first-time fault finding on every model.
Our shop runs ISTA+ and ISTA-D paired with model-matched spring tools, press rigs, and torque-angle gear. This is the same setup used at official dealer workshops.
All swaps carry a twelve-month warranty on both labour and parts. We source from Bilstein, Sachs, Lemförder, and Meyle HD, all of which match OEM size and build specs.
Every quote is fixed once approved. The price you agree to is the price you pay, with no add-on charges, no padded labour hours, and no parts markup beyond the listed unit cost.
800 Sayara offers free pickup and return covering Khalifa City, Al Reem Island, Yas Island, Saadiyat Island, and Mussafah. Your daily schedule stays fully on track throughout the service booking.
Every finished job includes a watched road test and a printed alignment check sheet. This confirms that all camber, caster, and toe readings fall within factory limits before handover.
Fixing a worn thrust arm at AED 900–1,600 stops the angle shift that ruins a tyre set worth AED 800–1,500. It also keeps brake pads and rotors from wearing too fast, which would otherwise lead to unplanned brake repair. Booking suspension checks alongside a routine BMW oil change cuts out repeat labour and keeps every chassis part on one service timeline.
Factory guidance calls for an underbody check every 20,000 km or twelve months. A peer-reviewed study in the Journal of Infrastructure Systems (ScienceDirect, 2021) confirms that road roughness directly boosts chassis loads. That makes ongoing checks very valuable across Abu Dhabi's highway and urban road network.
A free multi-point check spots every worn part before small issues turn into costly failures. Our service team is ready seven days a week to set up your booking at a time that works for you. Call 800 Sayara now or send the enquiry form, because waiting only adds to the final bill.
800 Sayara — Al Hasheemah 4 St, Musaffah Industrial, Abu Dhabi· Mon–Sat 9:00–19:00·Open in Google Maps·+971 52 731 8779
Typical driving time to our workshop from every area we cover (tap a location to open the route):
Times are Google Maps' typical range leaving on a weekday at 11:00 AM; rush hour takes longer. Free pickup and delivery of your car is available across Abu Dhabi.
Still have a question?
Talk to a BMW advisor directly. Free written estimate before any work begins.
+971 52 731 8779 WhatsAppMost 3-Series and 5-Series models take 6–8 labour hours. Air-ride X5 and 7-Series cars need 8–12 hours due to added digital tuning steps.
It is possible but not advised. A new damper paired with a worn one creates a 15–25% rebound force gap that the car's balance system masks rather than fixes.
Non-OEM springs or coilovers do not void the full car warranty. Only part failures tied to the change, such as CV joint wear from altered shaft angles, fall outside cover under Magnuson-Moss rules.
Standard units use fixed-rate dampers set to one damping curve. Adaptive systems (EDC or Adaptive M) adjust damping force in split seconds using valve control based on speed, steering angle, and motion sensor input. They cost roughly 40–60% more to service.
The pump often lasts 120,000–160,000 km. Slow air spring leaks force it to run more often, which cuts its lifespan by a wide margin.
Alignment is included with any job that shifts ride height or moves a key mount point, such as strut, control arm, spring, or subframe bushing swaps. Shock-only jobs usually do not need it.
No. Worn struts, cracked springs, or failed bushings weaken handling, stretch braking distances by up to 20%, and cause uneven tyre wear. Ongoing driving puts extra stress on steering links and wheel-end parts, often leading to unplanned bmw steering repair and early BMW tyre change costs.
A shock absorber pair swap ranges from AED 1,200 to AED 3,500. A full front-end refresh on an air-ride X5 or 7-Series can reach AED 14,000. Buyers looking at a used car can request a BMW pre-purchase inspection to find hidden wear before closing the deal.
